Cell Respiration Pathways Chart

Your chart should include:

• Products of each step (Write a simplified structural formula of each molecule)
• Enzymes used in each step
• List the number of Carbon atoms in each molecule (e.g.-  Glucose: 6-C; 1,3-Bisphosphoglycerate: 3-C)...you will need to actually count the carbons.
• Show molecules that are used/given off in the different steps (i.e. CO₂, ATP, etc.)

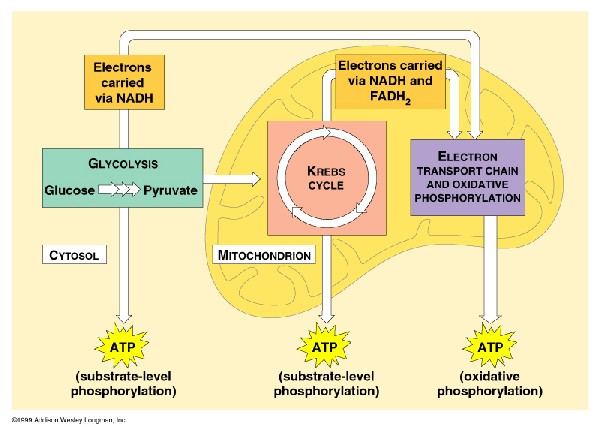

• Connect the three major pathways (like in the picture above) so that you can see how they interact and where they take place in the cell.  Only use the following figures:
• Old Textbook
• Fig. 9.9 (p. 154-155)
• Fig. 9.10 (p. 156)
• Fig. 9.11 (p. 157)
• Fig. 9.15 (p. 160)
• New Textbook
• Fig. 7.9 (p. 140-41)
• Fig. 7.10 (p. 142 top, left)
• Fig. 7.11 (p.143)

• Fig. 7.14 (p. 146)

• Don't even try to turn in this assignment if it is not hand written on one side of one piece of paper.  By seeing all of the pathways at once, you will be able to better understand and visualize respiration.  See me if you need a bigger piece of paper.
• If you have questions, e-mail me or see me at school.
